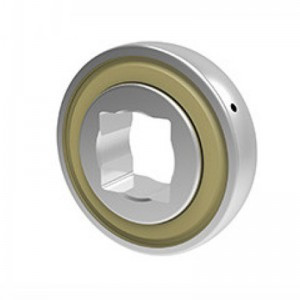

Alesaggio Piazza rilubrificabili
| Bearing NO. | genere | Dimensioni (mm / a). | Coefficienti di carico | Peso (kg) | ||||||
| d 1 | H | D | C | B | h | DYC (Cr) | STC (Cor) | |||
| GW208 PPB5 | 2 | 32 | 29,972 | 80 | 24 | 36.5 | 6.4 | 29500 | 18100 | 0,635 |
| 1,2598 | 1.18 | 3.149 | 0,945 | 1.437 | 0.252 | |||||
| GW208 PPB6 | 2 | 27.8 | 26,162 | 80 | 24 | 36.5 | 6.4 | 29500 | 18100 | 0,762 |
| 1,0945 | 1.03 | 3.149 | 0,945 | 1.437 | 0.252 | |||||
| GW208 PPB8 | 2 | 32 | 29,972 | 80 | 24 | 30.2 | 6.4 | 29500 | 18100 | 0,658 |
| 1,2598 | 1.18 | 3.149 | 0,945 | 1.189 | 0.252 | |||||
| GW209 PPB17 | 2 | 32 | 29,972 | 85,738 | 30.2 | 36.5 | 6.6 | 32700 | 20900 | 1.922 |
| 1.26 | 1.18 | 3,3155 | 1.189 | 1.437 | 0,2598 | |||||
| GW209 PPB5 | 2 | 34.3 | 32,766 | 85 | 30.2 | 36.5 | 6.6 | 32700 | 20900 | 0.795 |
| 1,3504 | 1.29 | 3,3465 | 1.189 | 1.437 | 0,2598 | |||||
| GW209 PPB8 | 2 | 34.3 | 32,766 | 85 | 22 | 36.5 | 6.6 | 32700 | 20900 | 0,749 |
| 1,3504 | 1.29 | 3,3465 | 0,8661 | 1.437 | 0,2598 | |||||
| GW210 PPB4 | 1 | 32 | 29,972 | 90 | 30.2 | 30.2 | 6.6 | 35000 | 23200 | 0.84 |
| 1,2598 | 1.18 | 3,5433 | 1.189 | 1.189 | 0,2598 | |||||
| GW211 PP17 | 3 | 42 | 38.89 | 100 | 33.3 | 44.45 | 7.6 | 43300 | 29200 | 1.252 |
| 1,6535 | 1,5311 | 3.937 | 1,3126 | 1.75 | 0,2992 | |||||
| GW211 PP3 | 4 | 42 | 38.89 | 100 | 33.3 | 33.3 | 7.6 | 43300 | 29200 | 1.106 |
| 1,6535 | 1,5311 | 3.937 | 1,3126 | 1,3126 | 0,2992 | |||||
| GW211 PP5 | 3 | 42 | 38.89 | 101.6 | 36.5 | 44.45 | 7.6 | 43300 | 29200 | 1.302 |
| 1,6535 | 1,5311 | 4 | 1.437 | 1.75 | 0,2992 | |||||
| GW211 PPB3 | 1 | 42 | 38.89 | 100 | 33.3 | 33.3 | 7.6 | 43300 | 29200 | 1.036 |
| 1,6535 | 1,5311 | 3.937 | 1,3126 | 1,3126 | 0,2992 | |||||
| GW214 PPB4 | 1 | 54,9 | 52.2 | 125 | 39.7 | 39.7 | 9 | 62100 | 44800 | 2.157 |
| 2.161 | 2.055 | 4,9213 | 1.563 | 1.563 | 0,3543 | |||||
